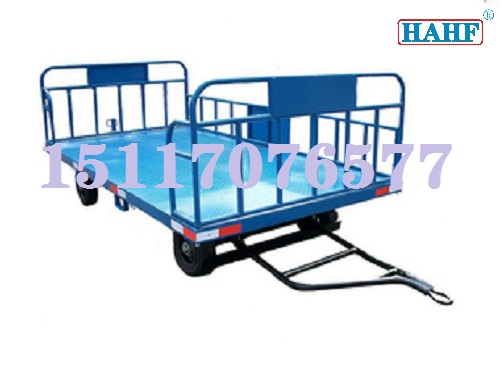

拖車
產品規格型號
類型 集裝箱運輸, 貨盤, 設備裝載
車軸數量 雙車軸
其他特性 貨運飛機
應用領域 機場
應用 飛機
長度 最多: 3,250 mm (128 in) 最少: 3,200 mm (126 in)
寬度 最多: 1,750 mm (68.9 in) 最少: 1,700 mm (66.9 in)
產品功能介紹
拖車用于裝載行李、包裹及散裝貨物。 尾部裝有自鎖式掛鉤，防止后車脫鉤。 拖把具有多車連接與剎車雙重功能。 前軸裝有特制轉盤使車輛在行駛過程中轉向自如。 輪胎采用超耐磨實心輪胎，使用壽命長。 裝載形式：兩面裝載。 定制：整車面板可根據客戶要求采用不同方案（不銹鋼板或花紋鋼板），外形尺寸可根據客戶需求設計制定。
無動力拖車主要技術參數
1 、外形尺寸 3200-3250*1700-1750*1320-1360 ㎜。
2 、工作臺尺寸 3200-3250*1700-1750*1320X520-560 ㎜。
3 、工作臺面距地面高度 560 ㎜
4 、前欄桿高度 800 ㎜
5 、后欄桿高度 160 ㎜
6 、自重 ≥520 千克
7 、最小載荷 ≥2000 ㎏
8 、軸距 2000-2100 ㎜
9 、輪距 - 前輪 1200 后 1300 ㎜
10、最高行駛速度 - ≤25km/h 11 - 最小轉彎半徑 - ≤3500mm
Trailer
Product Specifications and Models
Type: Container transport, pallet, equipment loading
Number of axles: Dual axle
Other features: Freight aircraft
Application areas: Airports
Usage: Aircraft
Length: Maximum: 3,250 mm (128 in) Minimum: 3,200 mm (126 in)
Width: Maximum: 1,750 mm (68.9 in) Minimum: 1,700 mm (66.9 in)
Product Function Introduction
The trailer is used for loading luggage, parcels, and bulk cargo. The tail is equipped with a self-locking hook to prevent the rear vehicle from decoupling. The trailer has dual functions of multi-vehicle connection and braking. The front axle is equipped with a special turntable, allowing the vehicle to turn freely during driving. The tires use super wear-resistant solid tires, with a long service life. Loading method: Two-sided loading. Customization: The entire vehicle panel can be designed according to customer requirements (stainless steel plate or patterned steel plate), and the dimensions can be designed and customized according to customer needs.
Main Technical Parameters of Non-Powered Trailers
1. External dimensions: 3200-3250*1700-1750*1320-1360 mm.
2. Workbench dimensions: 3200-3250*1700-1750*1320X520-560 mm.
3. Height of workbench surface from ground: 560 mm
4. Height of front barrier: 800 mm
5. Height of rear barrier: 160 mm
6. Self-weight: ≥520 kg
7. Minimum load capacity: ≥2000 kg
8. Wheelbase: 2000-2100 mm
9. Wheel track - front wheel 1200, rear 1300 mm
10. Maximum travel speed - ≤25km/h
11. Minimum turning radius - ≤3500mm
